Uninterruptible Power Supply UPS Module for Jetson Nano Developer Kit B01, Support Charge and Power Output at The Same Time Stable 5V 2.5A Power Output Real Time OLED Monitor Safe and Stable Circuit

Uninterruptible Power Supply UPS Power Module is compatible with Jetson Nano Developer Kit B01. Support Charge and Power Output at the Same Time Stable 5V Power Output Real Time OLED Monitor Safe and Stable Circuit Design Power Jetson Nano seamlessly from power connection OR the backup batteries. Features 1. Compatible with Jetson Nano Developer Kit B01,Mounting holes are compatible with Jetson Nano Developer Kit. Communicating via I2C bus through 6PIN cable, no other IO pin required 2. I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time 3. 0.91" OLED for displaying info like batteries voltage, IP address, RAM usage, etc. 4. Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable 5. Onboard 5V regulator, up to 2.5A continuous output current 6. Batteries warning indicators, easy to check if the battery is connected correctly It is able to charge the batteries and provide power output at the same time from external power supply Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble Specifications Output Voltage: 5V Charger: 8.4V 2A Control bus: I2C Supported battery: 18650 Li battery (NOT included) Battery capacity: 4x batteries 10400mAh Dimension: 113mm × 79mm Mounting hole: 2.5mm Note: The 18650 batteries are NOT included Comes with Online Development Resources and Manual,Please send us Amazon message to get it if necessary.

• Charge and Power Output at the Same Time: Uninterruptible Power Supply UPS Power Module is compatible with Jetson Nano Developer Kit B01. Support Charge and Power Output at the Same Time Stable 5V Power Output Real Time OLED Monitor Safe and Stable Circuit Design. Power Jetson Nano seamlessly from power connection OR the backup batteries.
• Uninterruptible Power: It is able to charge the batteries and provide power output at the same time from external power supply. Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble

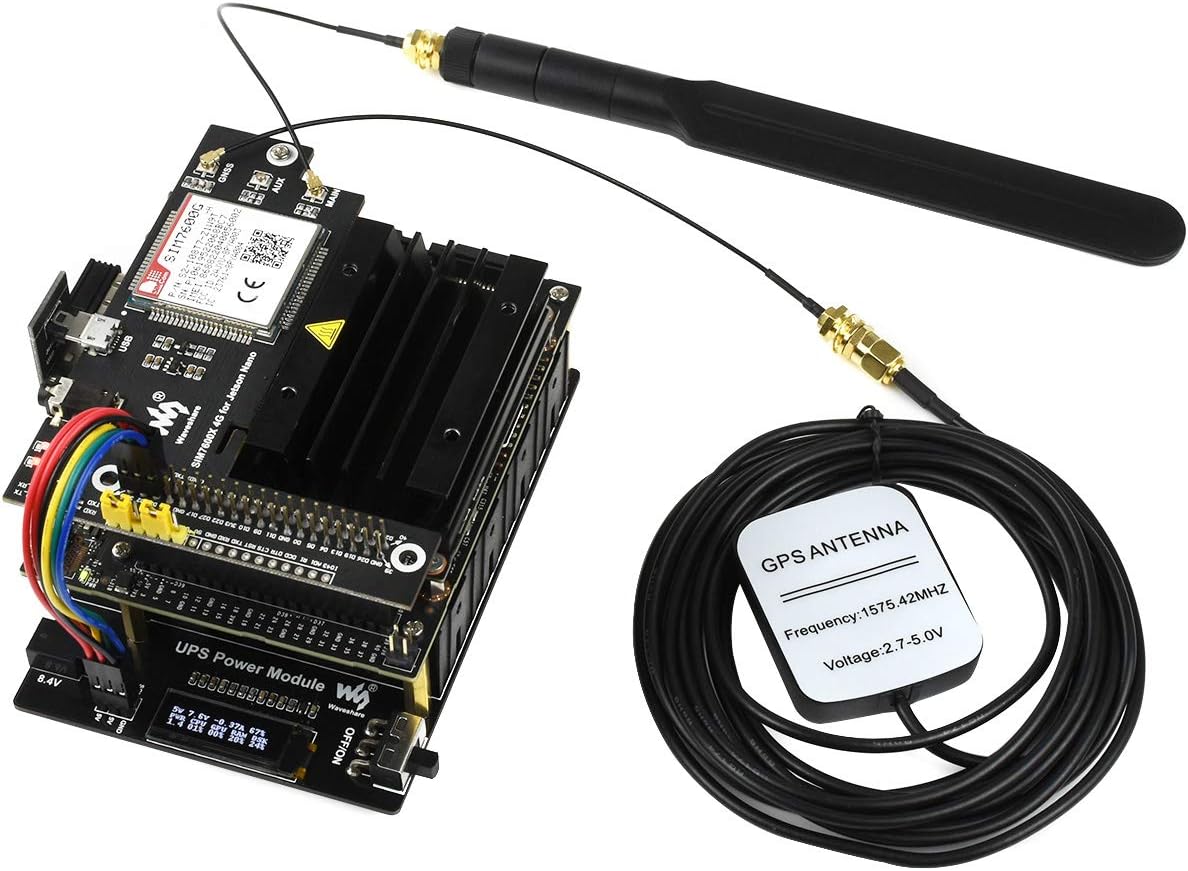

• Compatible with Jetson Nano Developer Kit B01: Mounting holes are compatible with Jetson Nano Developer Kit Communicating via I2C bus through 6PIN cable, no other IO pin required

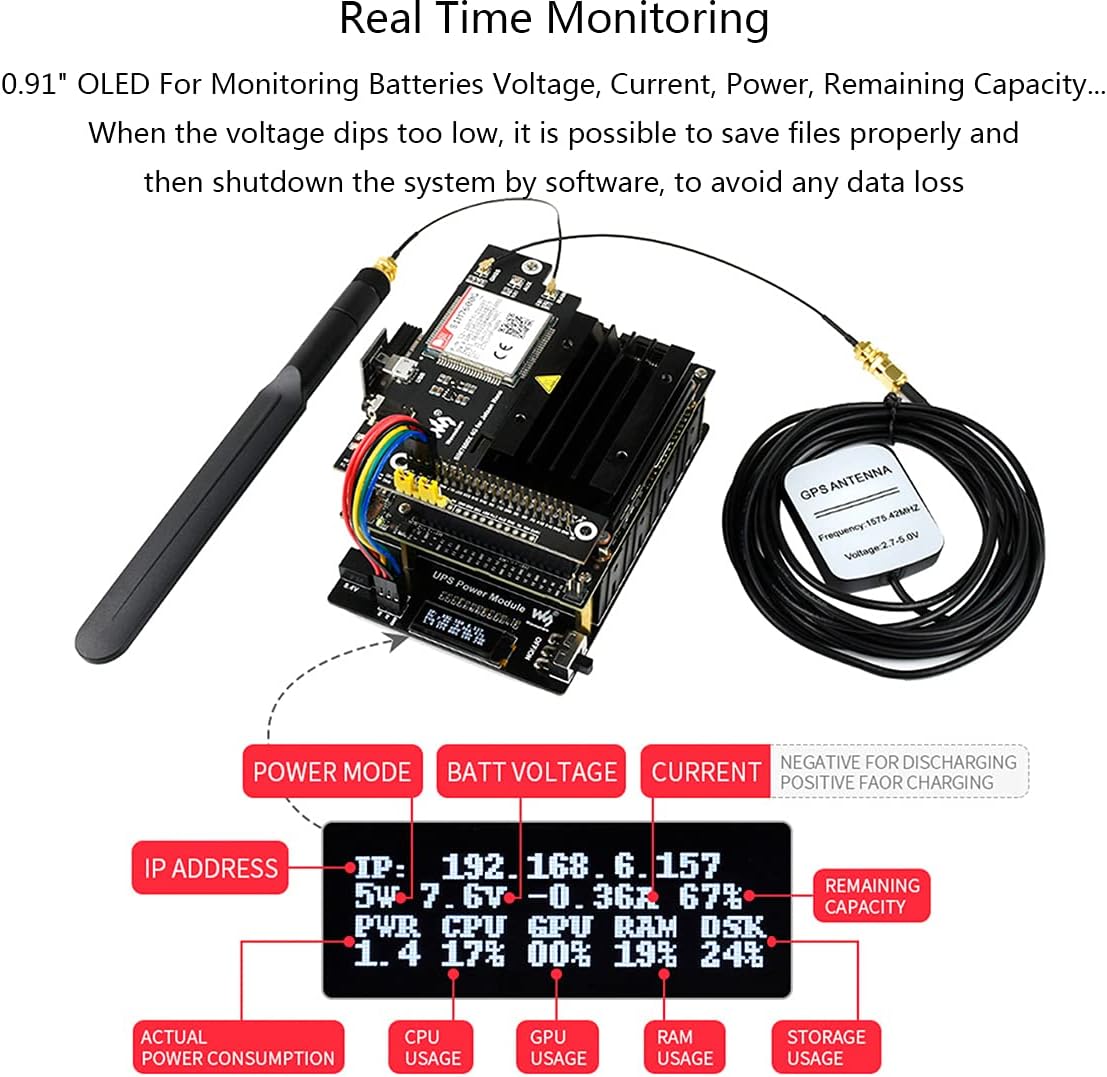

• Real time monitoring: 0.91" OLED for monitoring batteries voltage, current, power, remaining capacity... When the voltage dips too low, it is possible to save files properly and then shutdown the system by software, to avoid any data loss

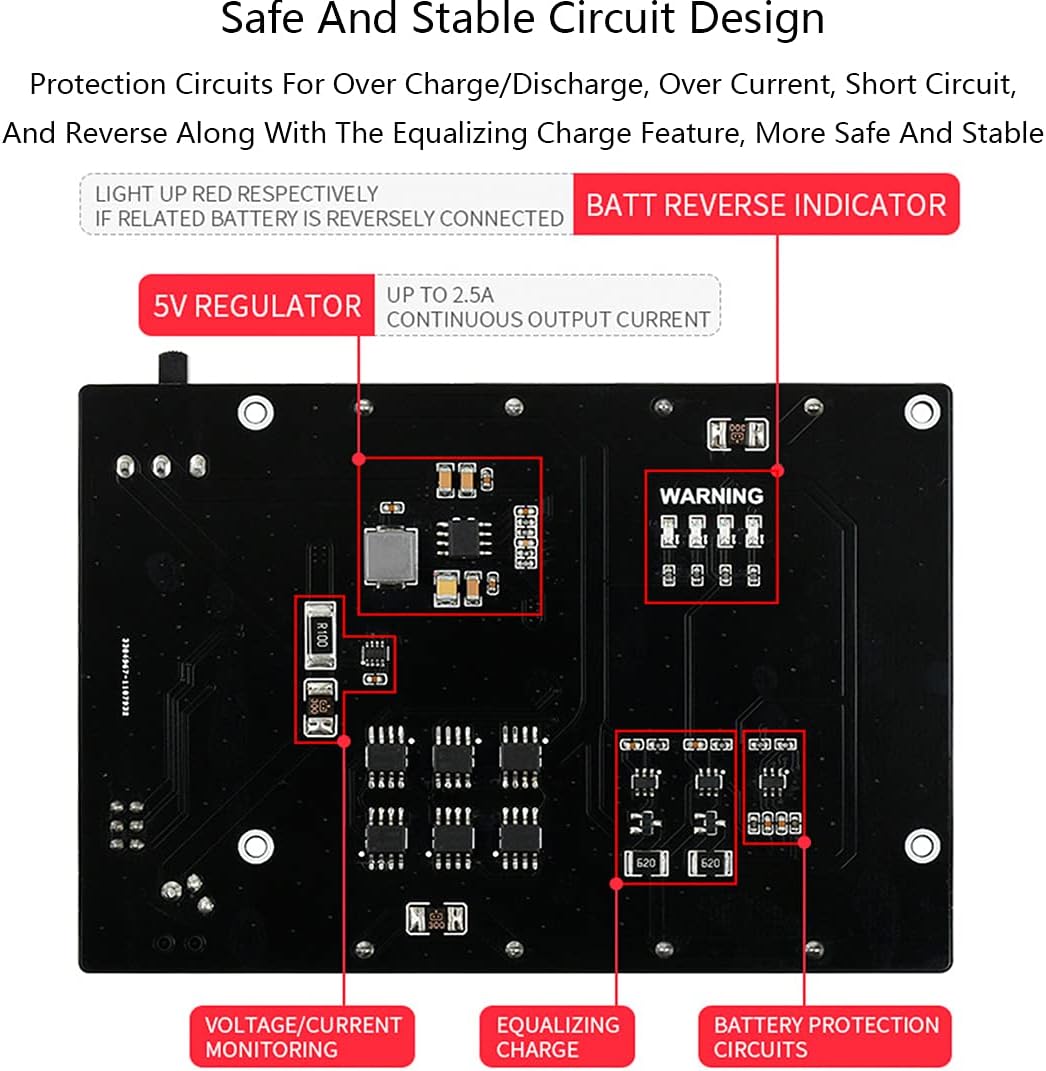

• Safe and Stable Circuit Design: Protection circuits for over charge/discharge, over current, short circuit, and reverse along with the equalizing charge feature, more safe and stable
• Comes with Online Development Resources and Tutorials to help you get started quickly: bit.ly/3MEO5ZH
